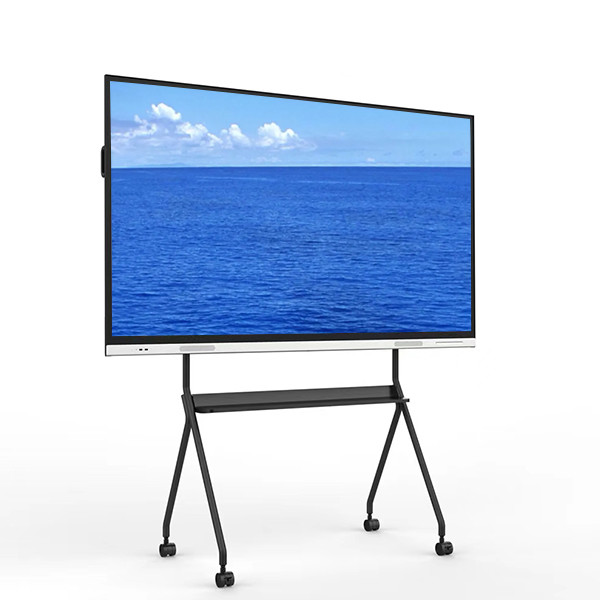

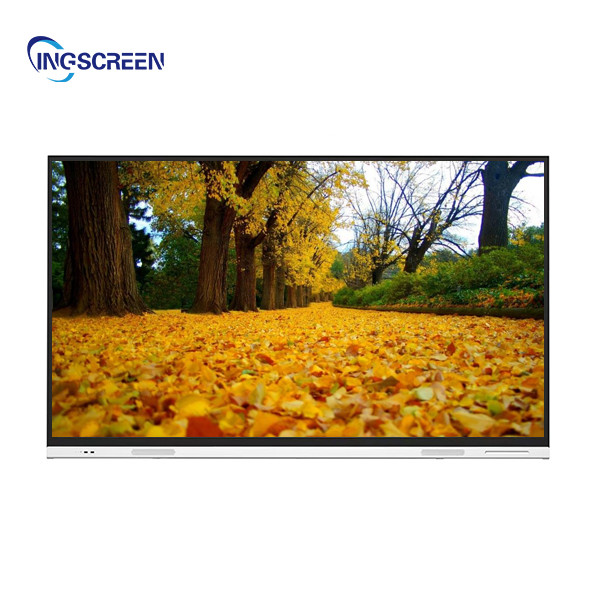

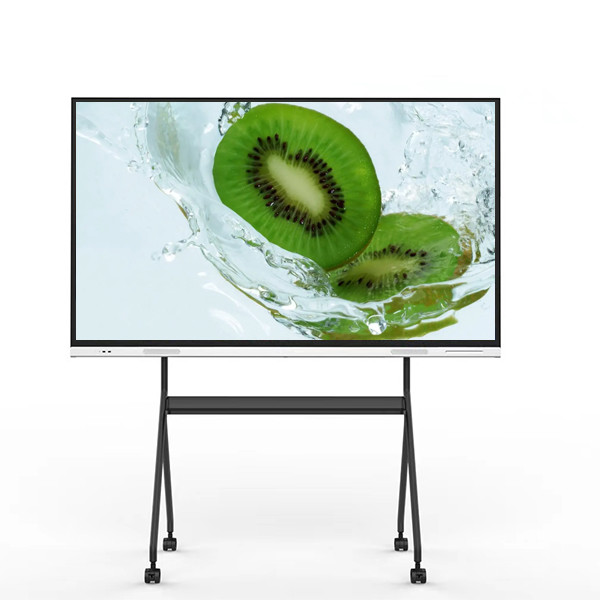

LCD Multi Touch Digital Capacitive Interactive Whiteboard 178 Degree For Classroom
| Place of Origin | Dongguan |
|---|---|
| Brand Name | INGSCREEN |
| Certification | CE CB FCC ROHS ISO9001 |
| Model Number | IS-85C |
| Minimum Order Quantity | 1 |
| Price | $1356-$1695 |
| Packaging Details | Carton, Wooden rack & Wooden box |
| Delivery Time | 5 Workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20000 Pcs/ per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Capacitive Interactive Flat Panel | Size | 85 Inch |
|---|---|---|---|
| Resolution | 4 K | Light Source | DLED |
| Visual Ratio | 16:9 | OS | Android 8.0 & Windows |
| RAM | 3G | ROM | 32G |
| High Light | LCD Capacitive Interactive Whiteboard,Capacitive Interactive Whiteboard 178 degree,ROHS digital whiteboard for classroom |
||
Product Description
LCD Interactive Smart Boards Touch Screen Capacitive Technology Multi Touch Digital Whiteboard Interactive Display
The growing trend of the Capacitive interactive whiteboard markets across the globe is attributed to their end-user and increasing adoption of e-learning and virtual learning. It allows to easily share the screen with remote attendees. Interactive whiteboard users can make persistent and effective changes to documents during sessions. The restraining factors are most not having proper awareness and high-investment costs.
|
Size |
55/65/75/85/86 inch |
| Touch type | Capacitive sensor |
| Touch points | 10 |
| Screen assembly technology | Zero gap |
| Tempered glass | 4 MM |
| Backlight type | DLED |
| Visual ratio | 16:9 |
| Resolution | 3840(H)×2160(V) |
| Pixel pitch | 0.372×0.372mm |
| Frequency | 60Hz |
| Contrast ration(Typ) | 1200:1 |
| Viewing Angle | 178°(H/V) |
| Brightness | 350-400 cd/m2 |
| Contrast ration(typ)/(min) | 1400:1 |
| Audio output power | 8Ω15W*2 |
| Touch drive | HID |
| Touch sensitive method | Fingers, stylus |
| Touch screen positioning resolution | 4096*4096 |
| Touch screen communication interface | USB 2.0 |
| Response time | ＜8ms |
| Scan frequency | 100 Hz/s |
| Cursor speed | 100 Hz |
| Touch accurancy | ≤±1 mm |
| Configuration | Android8.0 2/16G RAM,16/32GB ROM. WIFI 2.4 Ghz+5G |
| OS | XP/Win7/ Win10/ LINUX/ Android |
| Front port | USB 3.0,USB 2.0,HDMI IN, TOUCH B,TYPE C, |
| I/O |
RJ45*1, HDMI*2,VGA*1,VGA AUDIO*1,YPBPR*1,AV*1,TV*1,RS232*1,USB2.0*2,SPDIF*1,Earhpone*1 TV*1, TOUCH B*1 |
| Storage environment | Storage temperature: -20℃~60℃; storage humidity: 10%RH~90%RH |
| Working environment | Working temperature: -10℃~55℃; working humidity: 10%RH~90%RH |
| Voltage | 110~240V/50~60Hz |
| Power Consumption | 270W |
| Standby Consumption | ≤ 0.5W |
| Processor | MSD848(8386) |
| OPS | CPU I3 6th, 2.4Ghz, DDR3 4G RAM, SSD 128G, 60Hz/4K |
| Chipset:Intel(R) 7 Series Chipset Family Mobile | |
| Graphics:HD Graphics 3000, Sound card:Realtek ALC622 HD | |
| Wifi | 2.4Ghz +5G |

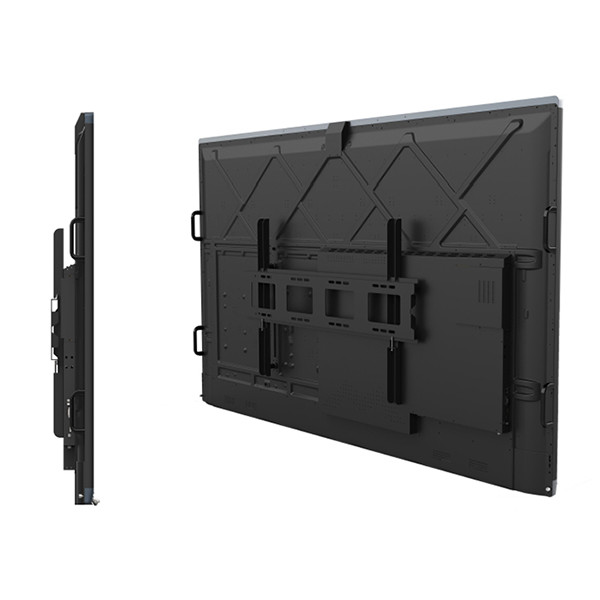

| Accessories | Wall mount, expansion screw, touch pen, warranty card, certificate of conformity, manual, remote control Optional accessories: mobile bracket, telescopic pointer, screen projector |
1) Aluminum alloy frame, surface sandblasting and anodic oxidation treatment, iron shell back cover, active heat dissipation;
2) 4mm physical tempered anti-riot glass; enhance the visual effect and enhance the touch experience;
3) High-speed 10-point touch writing experience, better smoothness and faster writing speed;
5) Using the OPS slot of the international general standard, the integrated plug-in design is convenient for upgrading and maintenance, and there is no visible external connection line of the computer module, and the body is beautiful;
6) Front expansion port: 1 PC-USB, 1 full-channel-USB, including 1 HDMI input on the lower side of the front, 1 TOUCH USB, 1 TYPE-C (USB2.0 protocol), which is convenient for users to connect external devices use
7) The speaker is placed in front of the sound to prevent the sound effect from deteriorating due to the embedded environment;
8) Child lock function, the button function can be shielded by setting;
9) Support gestures to pull up the menu, the menu can quickly adjust the brightness and sound, and switch the signal source
10) The front button is one-key start, which can turn on and off the screen and the host at the same time, and the operation is simple and convenient
11) Android 8.0 system support, multi-theme system setting switch at any time, startup LOGO setting customization and other functions
12) The system comes with functions such as screen projection, electronic whiteboard, and annotation
13) The screen assembly process adopts zero bonding technology, so that the display screen is naturally clear and transparent
